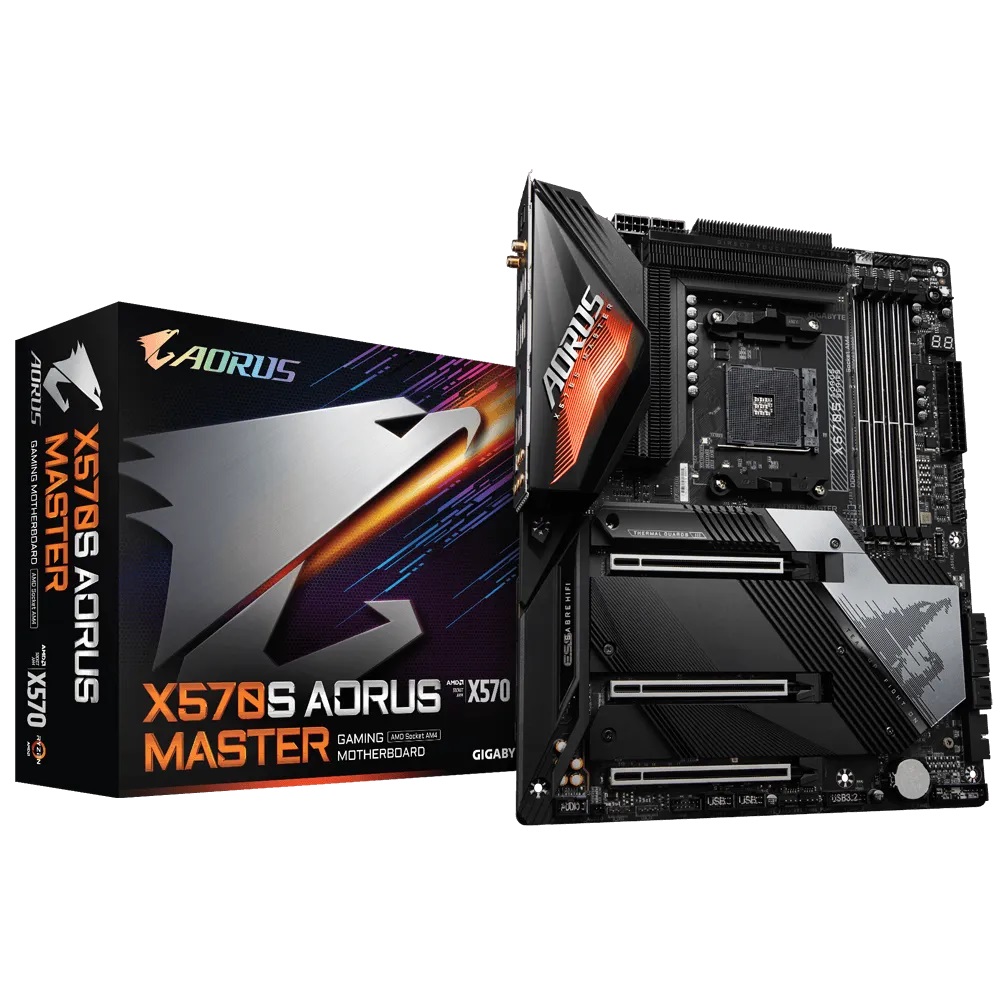

Placa de baza GIGABYTE X570S AORUS MASTER, Socket AM4

Placa de baza Gigabyte X570S AORUS MASTER AM4 Supports AMD Ryzen™ 5000 Series/ Ryzen™ 4000 G Series/ Ryzen™ 3000 Series/ Ryzen™ 3000 G Series/ Ryzen™ 2000 Series/ Ryzen™ 2000 G Series Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs Active OC Tuner features Dynamic Change Between P.B.O. and Manual OC Settings Direct 14+2 Phases Infineon Digital VRM Solution with 70A Power Stage Advanced Thermal Solution with Fins-Array II, Direct Touch Heatpipe II, M.2 Thermal Guard III and Thermal Backplate Intel® WiFi 6E 802.11ax & BT 5.2 Quad Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards Blazing Fast Intel® 2.5GbE LAN with cFosSpeed SuperSpeed USB 3.2 Gen 2x2 TYPE-C® delivers up to 20Gb/s transfer speeds 125dB SNR AMP-UP Audio with High-End ESS SABRE 9118 DAC, ALC1220-VB and WIMA Audio Capacitors Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card https://www.gigabyte.com/Motherboard/X570S-AORUS-MASTER-rev-10#kf

Recomandat pentru Gaming	Da
Format	ATX
Soclu procesor	AM4
Producator chipset	AMD
Model chipset	X570s
Procesoare suportate	AMD AM4 Socket Ryzen 3000/4000/5000 Series
Interfata grafica	PCI Express x16 4.0
RAID	0, 1, 10
Placa video integrata	Necesita procesor cu tehnologia AMD Radeon Vega Graphics
Placa audio integrata	7.1 Audio with Realtek ALC1220-VB
Chipset audio	Realtek ALC1220-VB
Placa retea integrata	10/100/1000/2500 Mbps
Chipset retea	Intel GbE
Numar SATA-III	6
M.2	4
Memorii Suportate
Tip memorie	DDR4
Memorie maxima	128 GB
Numar sloturi	4
Tehnologie	Dual channel
Frecvente suportate	4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
Sloturi
PCI Express 4.0 x16	3 (x16 / x8 / x4)
Multi-GPU CrossfireX	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

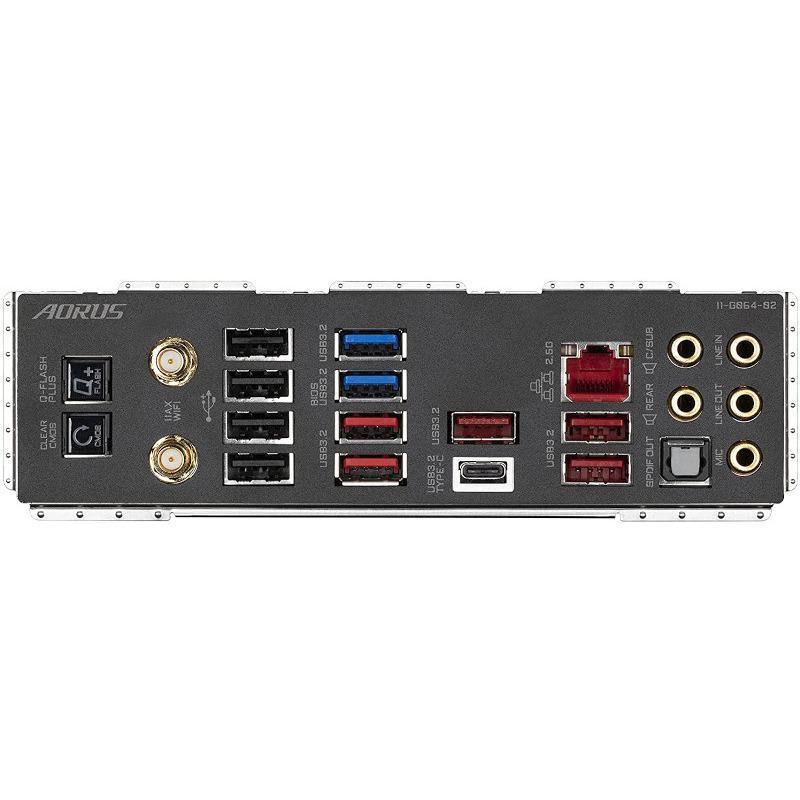

Conectori Back Panel
Optical S/PDIF out	1
USB 3.2 Gen1 tip A	2
USB 3.2 Gen2 tip A	5
USB 3.2 Gen2 tip C	1
RJ-45 LAN	1
Suport audio	7.1
Wireless	Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BIOS Flashback	Da
