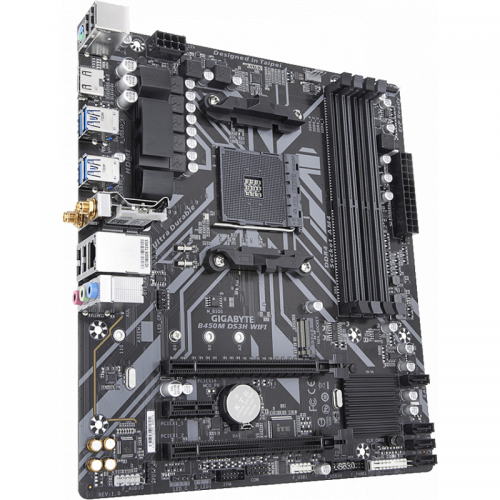

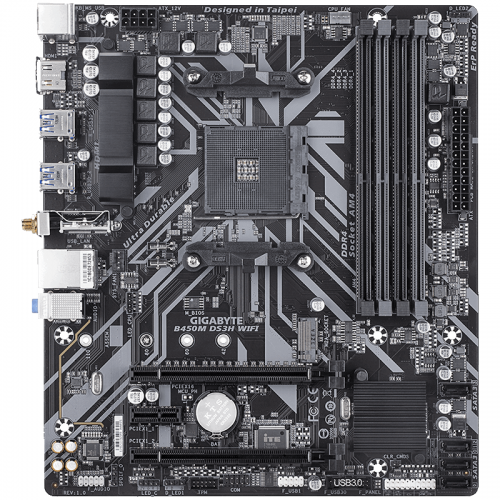

Placa de baza Gigabyte B450M DS3H WIFI, Socket AM4

Placa de baza Gigabyte B450M DS3H WIFI CPU AM4 Socket Chipset AMD B450 Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules Onboard Graphics - Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) Audio Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN Realtek® GbE LAN chip (10/100/1000 Mbit) Wireless Communication module Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 1 x PCI Express x16 slot 1 x PCI Express x16 slot, running at x1 (PCIEX1_2) 1 x PCI Express x1 slot 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) USB 4 x USB 3.1 Gen 1 ports on the back panel Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x RGB LED strip header 2 x addressable LED strip headers 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x RJ-45 port 3 x audio jacks I/O Controller Form Factor Micro ATX Form Factor; 24.4cm x 21.5cm

Placile de baza GIGABYTE AM4 sunt gata sa suporte cele mai recente procesoare AMD Ryzen ™ 3000 si sunt compatibile cu procesoarele AMD Ryzen ™ 2000 si 1000. Cu o lista bogata de functii pe placile de baza GIGABYTE AM4, cum ar fi Ultra Durable ™ Armor pentru sloturi PCIe / memorie, interfete USB Type-C ™ pe placi selectate, calitate audio rafinata, Ethernet de mare viteza si cel mai recent design WIFI standard, placi de baza GIGABYTE AM4 sunt perfecte pentru utilizatorii care doresc sa construiasca cele mai bune sisteme platforma AMD.
