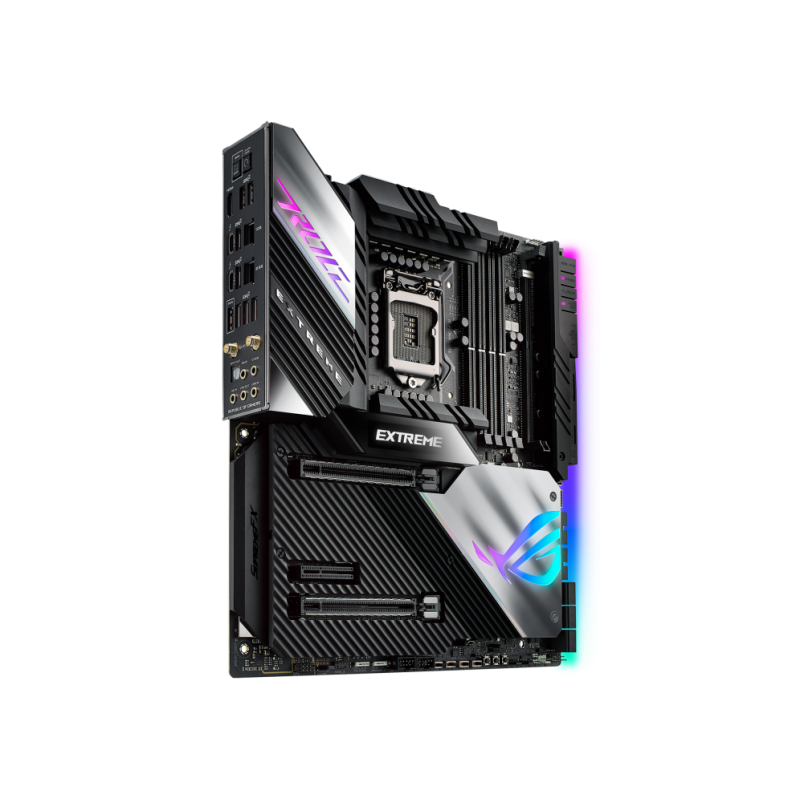

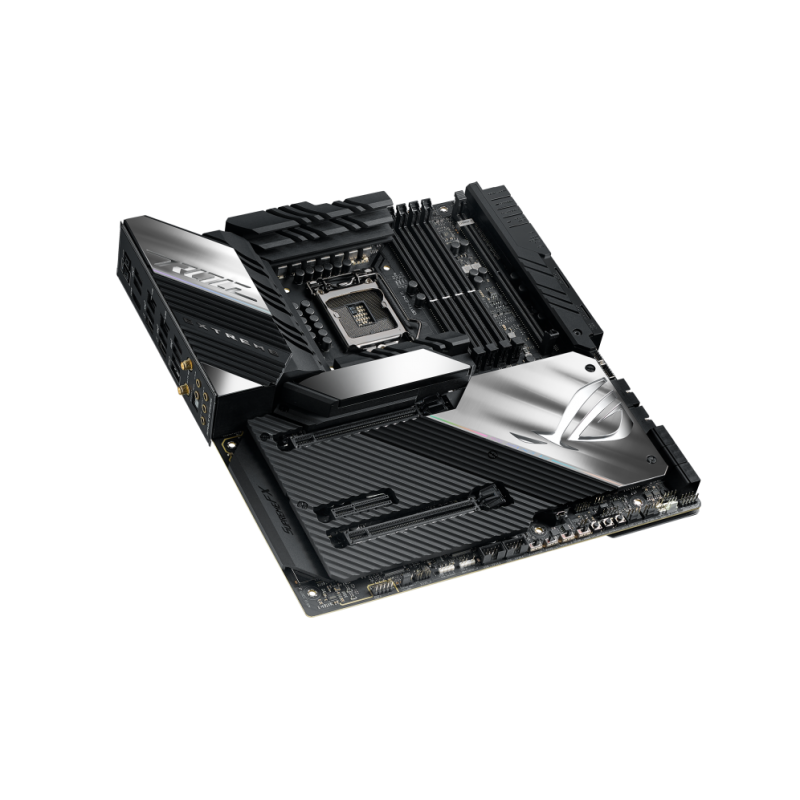

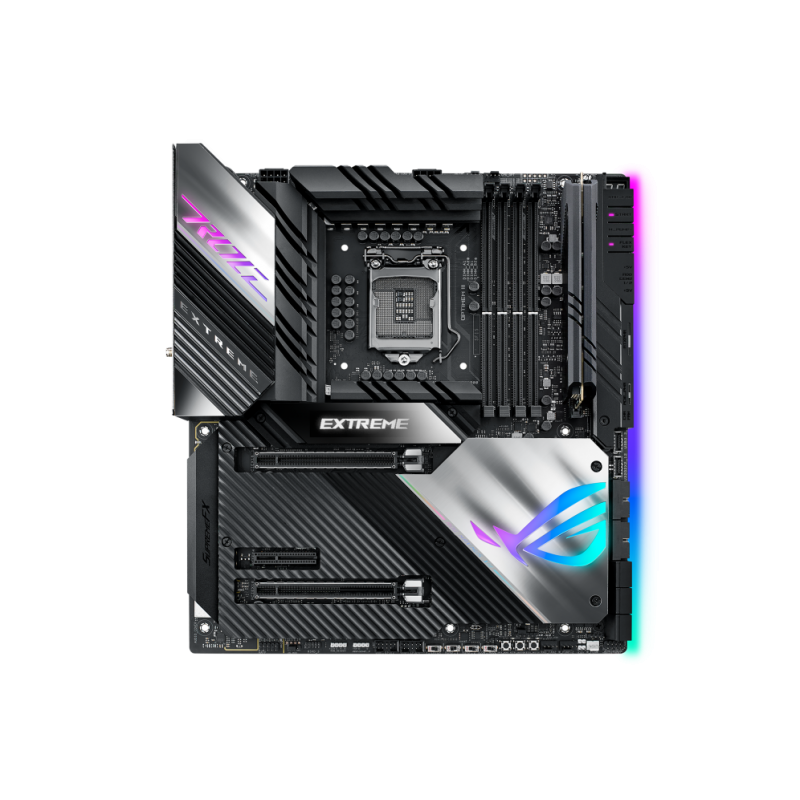

Placa de baza ASUS ROG MAXIMUS XIII EXTREME, Socket 1200

Placa de baza Asus ROG Maximus XIII Extreme ROG Maximus XIII Extreme CPU Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® Z590 Chipset Memory Memory Channels: 4 x DIMM (Dual Channel Memory Architecture) Max Memory Size: 128GB DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400 (OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400 (OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un- buffered Memory* Supports Intel® Extreme Memory Profile (XMP) OptiMem III * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. Graphics 1 x HDMI 2.0 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs * Graphics specifications may vary between CPU types. ** Only Intel® 11th Core™ processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates. Expansion Slots 2 x PCIe 4.0/3.0 x16 (x16, x8/x8) + 1 x PCIe 3.0 x4 * PCIEx4 slot shares bandwidth with SATA6G_12 and PCIEx4 slot is default set at x2 mode. Multi-GPU Support NVIDIA 2-Way SLI® Technology* *Support varies with different graphics cards Storage Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH- attached slots. To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. *Only Intel® 11th Core™ i5/i7/i9 processors support M.2 PCIe 4.0 x4 mode. * DIMM.2_2 shares bandwidth with SATA6G_34 and DIMM.2_2 is default set at x2 mode. Ethernet 1 x Intel® I225-V 2.5Gb Ethernet 1 x Marvell® 10Gb Ethernet USB Rear USB: Total 10 ports 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support 8 x USB 3.2 Gen 2 port(s) (8 x Type-A) Front USB: Total 10 ports 1 x USB 3.2 Gen 2x2 connector(s) (suppport(s) USB Type-C® 1 x USB 3.2 Gen 2 Front Panel connector(s) (support(s) USB Type-C® 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082, - Impedance sense for front and rear headphone outputs, - Supports: Jack-detection/ Multi-streaming/ Front Panel Jack-retasking, - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input, - Supports up to 32-Bit/384 kHz playback https://rog.asus.com/motherboards/rog-maximus/rog-maximus-xiii-extreme- model/spec/

• Socket Intel® LGA 1200 pentru procesoare Intel® Core ™ de a 11-a generatie si procesoare Intel Core, Pentium® Gold si Celeron® de a 10-a generatie;
• Proiectare termica optimizata: bloc de apa EK integrat care raceste VRM, CPU si PCH; tampoane termice cu conductivitate ridicata, cinci radiatoare M.2 cu placi incorporate si zona de racire cu apa ROG;
• Control inteligent: utilitare software si firmware exclusive ASUS care simplifica configurarea si imbunatatesc performanta: AI Overclocking, AI Cooling, AI Networking si AI bidirectional Anulare zgomot;
• Solutie de alimentare robusta: 18 + 2 trepte de putere in echipa - fiecare cu o putere de 100 Amperi, conectori de alimentare ProCool II, inductori din aliaj MicroFine si condensatori metalici negri de 10K din Japonia;

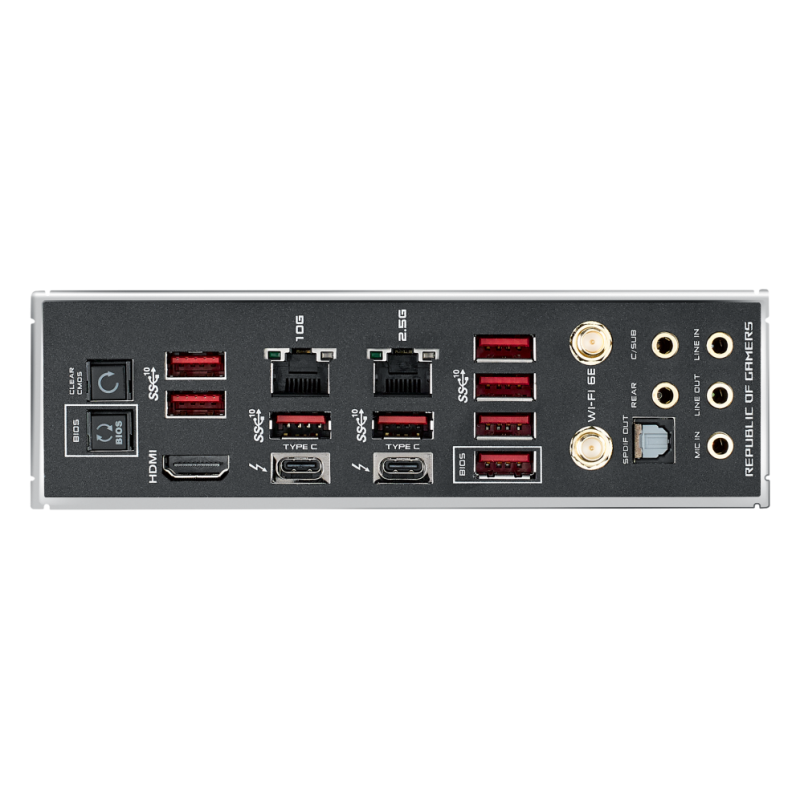

• Retea de inalta performanta: WiFi 6E la bord (802.11ax), Ethernet Marvell® AQtion 10 Gb, Ethernet Intel® 2,5 Gb si ASUS LANGuard;
• Cea mai rapida conectivitate pentru jocuri: PCIe® 4.0, cinci sloturi M.2, conector USB 3.2 Gen 2x2 pe panoul frontal, dual Thunderbolt ™ 4 USB-C®;
• Audio pentru jocuri lider in industrie: ROG SupremeFX ALC4082 cu DESS ES9018Q2C pentru sunet de inalta fidelitate;
• Personalizare de neegalat: OLED color LiveDash de 2 ”, iluminare RGB exclusiva ASUS Aura Sync, inclusiv un antet RGB si trei anteturi RGB Gen 2 adresabile;
• Proiectare prietenoasa DIY: scut I / O pre-montat, comutator V_Latch, BIOSFlashBack ™, Q-Code, FlexKey, Q-Connector, SafeSlot si suport pentru carduri grafice.
