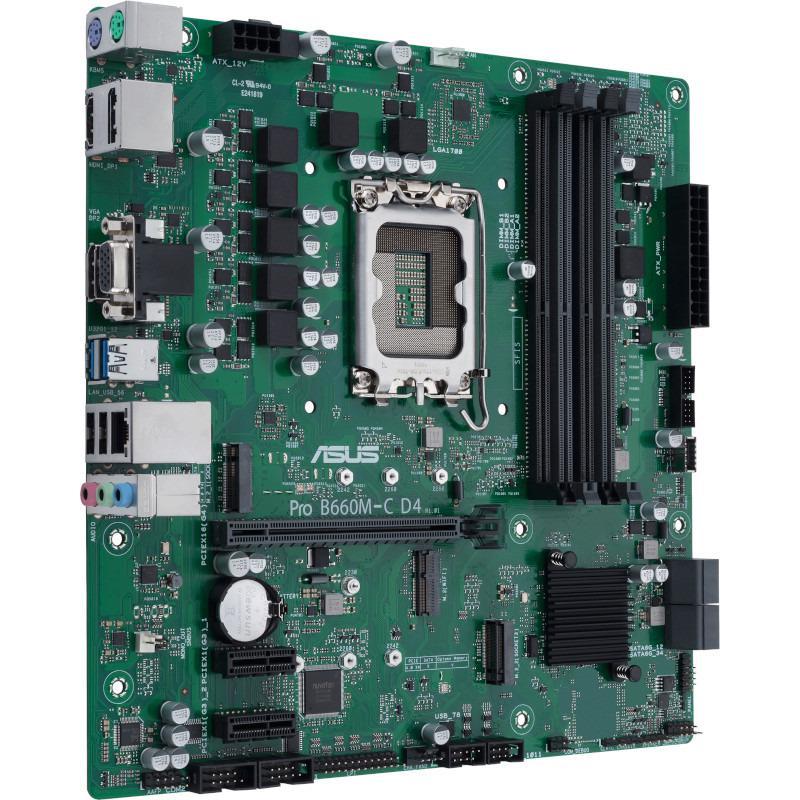

Placa de baza Asus PRO B660M-C D4-CSM, LGA 1700

Placa de baza Asus PRO B660M-C D4-CSM LGA 1700 CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset B660 Intel® B660 Chipset Memory 4 x DIMM, Max. 128GB, DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266 (OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333 (OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) Optimem *Actual Memory data rate support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphics 2 x DisplayPort** 1 x D-Sub port 1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots Intel® 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel® B660 Chipset 2 x PCIe 3.0 x1 slots Storage Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel® 12th Gen processors support PCIe 4.0 x4 mode Intel® B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. Ethernet 1 x Intel® 1Gb Ethernet 1 x Intel® 1Gb Ethernet ASUS LANGuard Wireless & Bluetooth M.2 slot only (Key E, CNVi & PCIe)* https://www.asus.com/Motherboards-Components/Motherboards/CSM/Pro-B660M- C-D4-CSM/techspec/

General
Recomandat pentru Gaming	Da
Format	mATX
Soclu procesor	1700
Producator chipset	Intel
Model chipset	B660
Procesoare suportate	Intel 12th Generation Core/Pentium Gold/Celeron
Interfata grafica	PCI Express x16 5.0
Placa audio integrata	7.1 Audio
Chipset audio	Realtek
Placa retea integrata	10/100/1000 Mbps
Chipset retea	Realtek
Numar SATA-III	4
M.2	2
Memorii Suportate
Tip memorie	DDR4
Memorie maxima	128 GB
Numar sloturi	4
Tehnologie	Dual channel
Frecvente suportate	5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz
Sloturi
PCI Express 4.0 x16	1 (x16)
PCI Express x1	2
Conectori Back Panel
PS/2 Mouse	1
PS/2 Tastatura	1
VGA	1
HDMI	1
Display Port	1
USB 2.0	2
USB 3.2 Gen1 tip A	2
USB 3.2 Gen2 tip A	2
RJ-45 LAN	1
Suport audio	7.1
