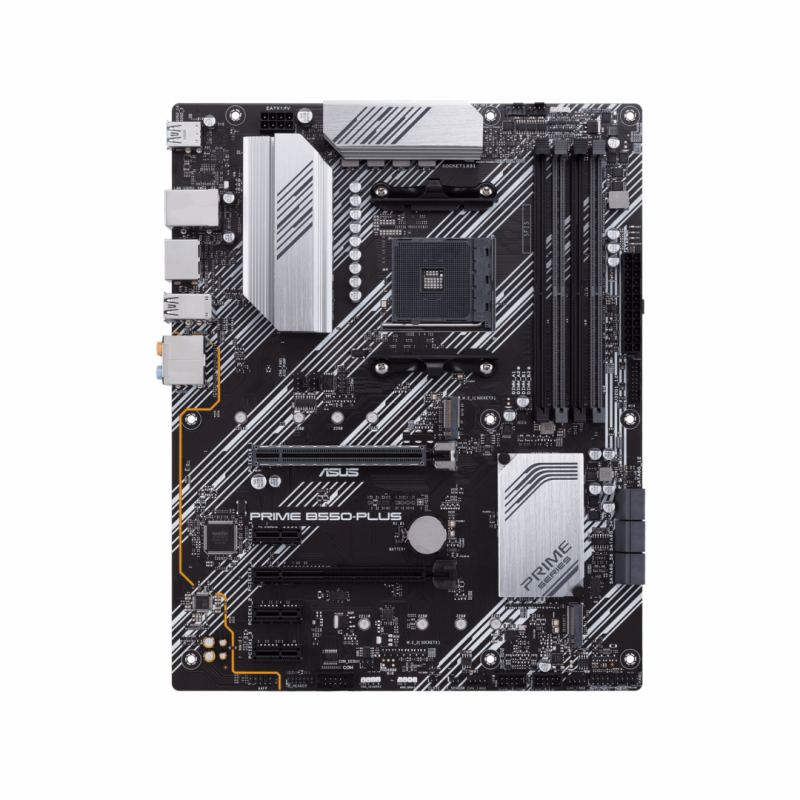

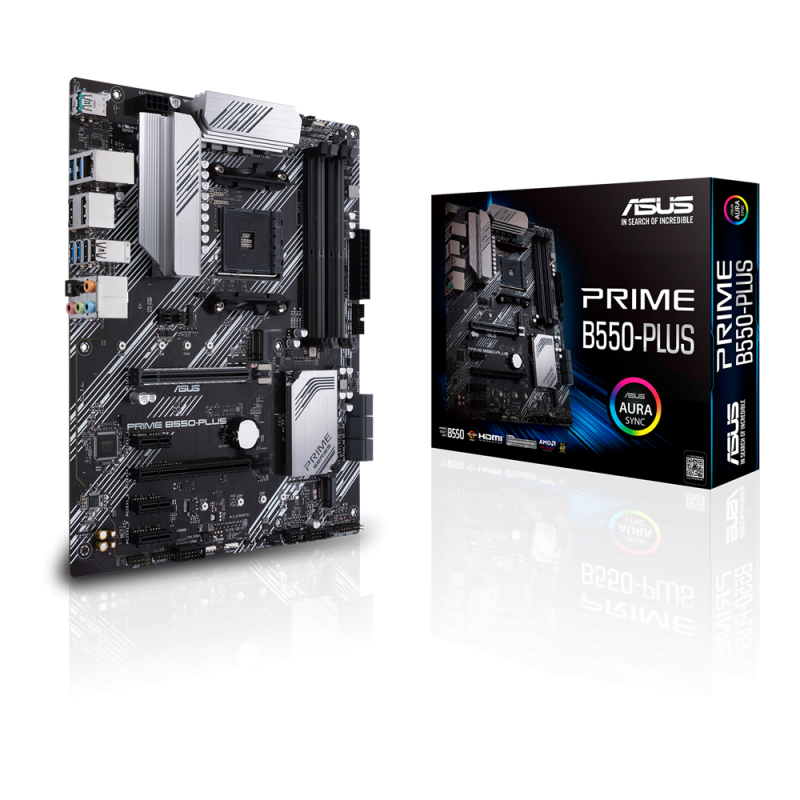

Placa de baza Asus PRIME B550-PLUS, Socket AM4

Placa de baza Asus AM4 PRIME B550-PLUS CPU Build in AMD AM4 Socket for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors * * Refer to www.asus.com for CPU support list Chipset AMD B550 Memory 3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133 (O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333 (O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory * 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400 (O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466 (O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory Dual Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic 1 x DisplayPort 1.2 * 1 x HDMI 2.1(4K@60HZ) *Graphics specifications may vary between CPU types. Multi-GPU Support Supports AMD 2-Way CrossFireX Technology Expansion Slots 3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 * Support PCIe bifurcation for RAID on CPU function. Storage Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD B550 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 6 x SATA 6Gb/s port(s), *2 Support Raid 0, 1, 10 LAN Realtek® RTL8111H ASUS LANGuard Audio Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack- retasking, up to 24-Bit/192kHz playback Audio Feature : - Optical S/PDIF out port(s) at back panel - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors - Unique de-pop circuit https://www.asus.com/Motherboards/PRIME-B550-PLUS/specifications/

CPU Socket: AM4

Format: ATX

Chipset: AMD B550

Tip memorie: DDR4

Sloturi memorie: 4

Capacitate maxima memorie RAM (GB): 128 GB

Frecventa memorie (MHz): 3200 , 2933 , 2666 , 2400 , 2133

Video integrat: Necesita CPU cu AMD Radeon Vega

LAN integrat: 10/100/1000 Mbps

Sloturi S-ATA 3: 6

Sloturi M.2: 2

Sloturi PCI-E x1: 2

Sloturi PCI-E x16 cu viteze x16, x8, x4, x2, x1: PCI-E 4.0 x 16 x 1 , PCI-E 3.0 x 16 x 1 , PCI-E 3.0 x 1 x 3

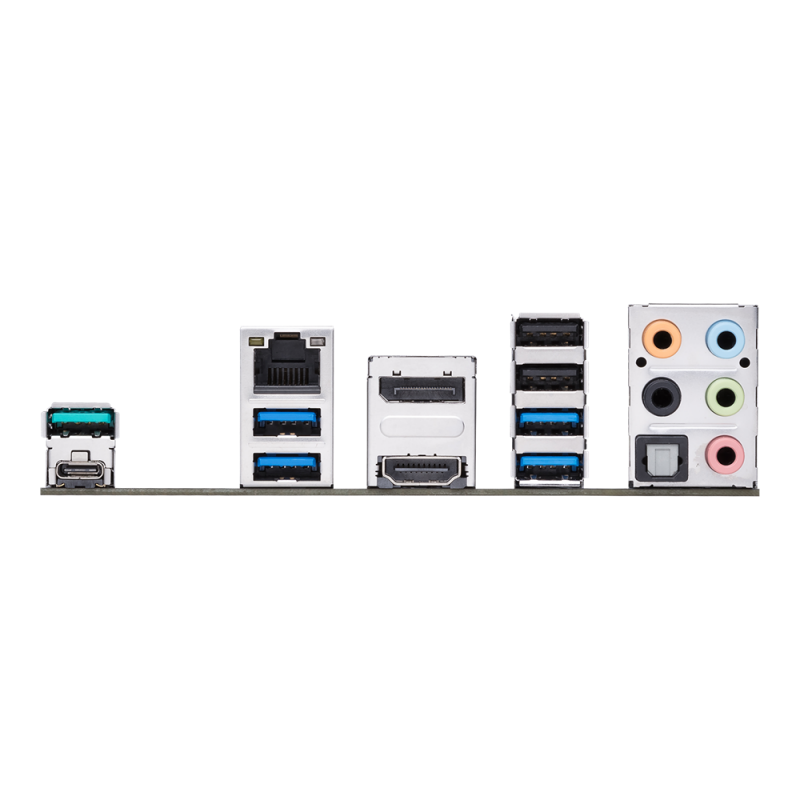

Porturi video: Display Port , HDMI

Iesire audio: 7.1

Porturi USB 2.0, 3.0, 3.1 Type A, 3.1 Type-C: USB 3.2 gen 2 x 1 , USB 3.2 gen 2 Type-C x 1 , USB 3.2 gen 1 x 6 , USB 2.0 x 6
