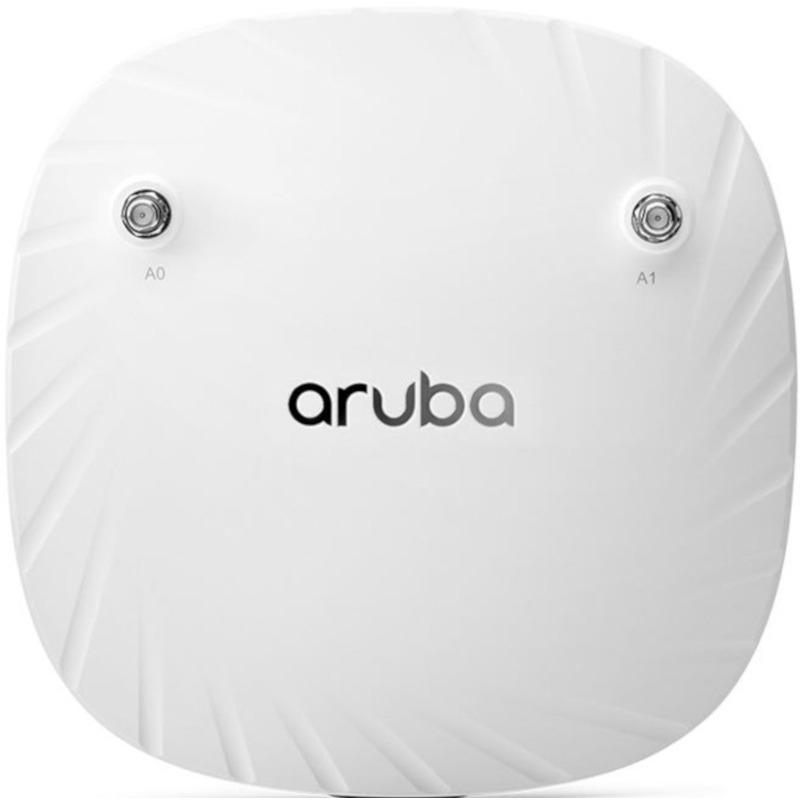

Access Point Aruba AP-504-Indoor, Dual-Band, Wi-Fi 6

Lifecycle

• Obsolete Date 31-12-2099
• End of support date 31-12-2104

Specifications

• Mounting Mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately); see the 500 Series Ordering Guide for details.
• Ports (1) 10/100/1000BASE-T
• Warranty Aruba limited lifetime hardware warranty. See https://www.arubanetworks.com/support-services/product-warranties/ Aruba limited lifetime hardware warranty. See https://www.arubanetworks.com/support-services/product-warranties/
• Input voltage IEEE 802.3af or 802.3at PoE, or direct DC power (via optional power supply)
• Power Consumption POE powered (802.3at): 11.0W / 16.5W. POE powered (802.3af): 11.0W / 13.5W. DC powered: 8.9W / 14.2W. Maximum (worst-case) power consumption (without / with a USB device attached).
• Weight 1.1 lb
• Weight 500 g
• Wi-Fi antenna Two RP-SMA connectors for external dual band antennas.
• Radio coverage Dual radio, 5GHz and 2.4GHz IEEE 802.11ax 2x2 MIMO. Maximum data rates of 1.2Gbps in the 5GHz band and 574Mbps in the 2.4GHz band (for an aggregate peak data rate of 3.55Gbps).
• Product dimensions (H x W x D) 1.5 x 6.3 x 6.3 in
• Minimum dimensions ( H x W x D) 37 x 160 x 161 mm

Quickspecs

• QuickSpecs (HTML)
• QuickSpecs (PDF)

Overview

The Aruba 500 Series Wireless Access Points provide high-performance connectivity to budget-conscious organizations experiencing growing numbers of mobile, IoT and mobility requirements. Supporting the latest Wi-Fi 6 standard, the 500 Series can achieve a maximum aggregate data rate of 1.77 Gbps (1.774 Gbps) for venues and workplaces such as schools, midsize offices, and retailers. The Aruba 500 Series APs are also designed to provide improved user experiences by integrating key Wi-Fi optimization technologies for increased Wi-Fi efficiency and optimized client airtime.

What's new

• Wi-Fi 6 for high performance and efficiency.
• Provides policy enforcement for wireless traffic through Dynamic Segmentation.
• IoT-ready with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee®.
• Supports up to 256 associated clients per radio.
• Can be deployed as a cloud-managed Instant AP or controller-based AP.

Features

The Aruba 500 Series Wireless Access Points support the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA), bi-directional Multi-User MIMO (MU-MIMO), and Target Wait Time (TWT).

Patented RF optimization technologies like ClientMatch have also been enhanced with Wi-Fi 6 awareness to group Wi-Fi 6-capable client devices together for optimized network utilization.

The Aruba 500 Series also supports AirSlice, a unique capability that enhances OFDMA with SLA-grade application assurance from the access point to the client device.

Features improved client visibility with integrated device profiling, and the option for advanced insights when integrated with ClearPass Policy Manager or ClearPass Device Insight.

It also comes with Intelligent Power Monitoring to enable or disable AP features based on available PoE power from a network switch.

This product can be managed locally, in the cloud with Aruba Central, or through a converged multivendor on-premises solution with Aruba AirWave.

The Aruba 500 Series Wireless Access Points can be deployed in either controller-less or controller-based mode, depending on enterprise requirements.

Supports Bluetooth 5 and Zigbee® wireless protocols through an integrated IoT radio, and third-party expansion with an integrated USB port.

The Aruba 500 Series Wireless Access Points have the ability to support up to 256 associated clients per Wi-Fi radio – ideal for organizations deploying Wi-Fi connected IoT devices.

Compatible products

• PC-AC-DEN (DK) AC Power Cord
• PC-AC-EC CONT EURO AC POWER CORD
• PC-AC-IT (IT) AC Power Cord
• PC-AC-SWI (CH) AC Power Cord
• PC-AC-UK (UK) AC Power Cord
• PC-AC-ZA (ZA) AC Power Cord
• AP-AC-12V30B 12V 30W Power Adapter (HPE)
• AP-CBL-SERU Console Adapter Cable
• AP-MNT-A AP MOUNT BRACKET INDIVIDUAL A
• AP-MNT-B AP MOUNT BRACKET INDIVIDUAL B
• AP-MNT-C AP MOUNT BRACKET INDIVIDUAL C
• AP-MNT-E AP MOUNT BRACKET INDIVIDUAL E
